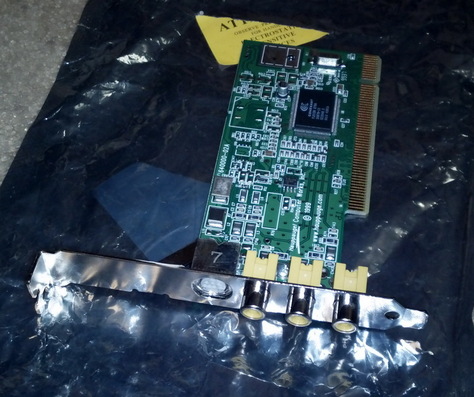

Hauppauge WinTv 64405 Rev B3 ImpactVCB PCI card


The ImpactVCB board provides image capture from a desk top CCD camera or other analog input. Impact VCB board is a small 1/3 height PCI board based on the Brooktree 878A video digitizer chip. It requires a bus-master PCI slot. A VGA card with Direct Draw 3 (or later) capability is required for Live Display. Operating system can be Window 95, Windows 98, WindowsME, NT 4.0, Windows 2000 and WindowsXP. Third party Linux drivers are available. Incoming image is digitized using high quality 4:2:2 video sampling and displayed in a window on the PC's VGA screen. The image is transmitted directly by the ImpactVCB into main system memory or the memory of the VGA adapter for high performance results.

A Programmers Toolkit is available for the ImpactVCB which provides both DLL and OCX support for applications requiring the ImpactVCB's video capture or video display. Applications can be developed in C or Visual Basic.

Product code: 64405
Model # 00558
Composite video inputs: 3
S-Video inputs: 1
5V power output: none
Audio input: none
Board height: low profile

All ImpactVCB models Support both PAL and NTSC compatibility (referred to as "dual crystal").

Product Description: Hauppauge Impact VCB video input adapter - PCI
Device Type: Video input adapter - plug-in card
Interface Type: PCI
Video Input: Video capture adapter - S-video input, composite video input - plug-in card
Analogue Video Format: NTSC, PAL
Analogue video Signal: S-Video, composite video
Digital Video Capture Speed: 30 frames per second
Frame Rate: NTSC:30 frames per second, PAL:25 frames per second
OS Required: Microsoft Windows 95/98/ME/2000/XP
Still Image Format: JPEG, BMP, TIFF, PCX, GIF
Still Image Capture Resolution: 640 x 480, 768 x 576

Interfaces: 1 x display / video - composite video input - RCA x 3 - external , 1 x display / video - S-video input - 4 PIN mini-DIN - external
Compatible Slots: 1 x PCI

More information at: ImpactVCB Specifications

Driver download: Hauppage Computer Works Hauppauge Win/TV Driver Download

Asking $10.00
