Intel® Desktop Board DH67VR

  • Listing id
    jwwrmouv
  • Categories
    Computers → Desktops
    Computers → Other Items
  • Asking price

    Asking $65.00 USD per item

  • Quantity

    1 item (New)

  • Tax
    Not applicable
  • Shipping & Handling

    Shipping worldwide

    Buyer pays actual cost

  • Payment Terms

    Payment in advance only

    Seller accepts Cash, Money order / Cashiers check, PayPal, Google Checkout

  • Posted
    7 years ago
crnv88
Tomball, TX
Member since September 23, 2006
Please only contact the seller if you are interested in buying or bartering for this item. Spam and fraud will not be tolerated.

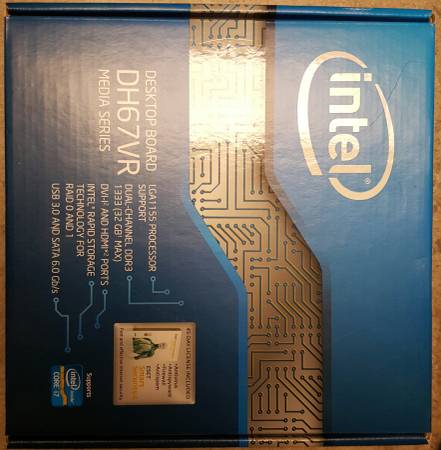

New in box, never opened.

The Intel® Desktop Board DH67VR is an Intel® H67 Express Chipset-based desktop board in micro-ATX form factor. It supports the 2nd generation Intel® CoreTM i7 processors, Intel® CoreTM i5 processors, and other Intel® processors in the LGA1155 package. The board is featured with DVI-I and Intel® High Definition Audio (Intel® HD Audio) HDMI driver connectors and supports dual independent display for processors with Intel® HD Graphics. Powered by the 2nd generation Intel® CoreTM processors, Intel Desktop Board DH67VR delivers a superb visual performance for sharper images, richer color, and lifelike audio and video.

Intel Desktop Board DH67VR also offers premium features such as two SATA 6 Gb/s ports, two USB 3.0 ports with 5 Gb/s link speed, and Intel® Rapid Storage Technology (Intel® RST) for RAID 0 and 1.


Features and Configurations

Form factor Micro-ATX
AA# (Altered Assembly) G27177-xxx
BIOS ID string BLH6710H.86A with Intel Fast Boot Technology
Processors
At product launch, this desktop board supports:
Intel® Core™ i7 processor series in an LGA1155 socket
Intel® Core™ i5 processor series in an LGA1155 socket
Intel® Core™ i3 processor series in an LGA1155 socket

Memory Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR3 1333/ 1066 MHz DIMMs
Support up to 32 GB of system memory

Chipset Intel® H67 Express Chipset
Intel® Rapid Storage Technology (Intel® RST) for RAID 0, 1

Graphics DVI-I and Intel® High Definition Audio HDMI Driver connectors for processors with Intel® HD Graphics
Audio Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration:

10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek ALC892* audio codec
Five analog audio ports and one optical S/PDIF out port
Internal S/PDIF header and front panel audio header

LAN support Gigabit (10/100/1000 Mbs/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral interfaces Two Serial ATA 6.0 Gb/s ports
Two USB 3.0 ports
Twelve USB 2.0 ports, four back panel ports, and eight additional ports via four internal headers

Expansion capabilities

One PCI Express* 2.0 x 16 discrete graphics card connector
Two PCI Express 2.0 x 1 connectors
One PCI Conventional bus connector
