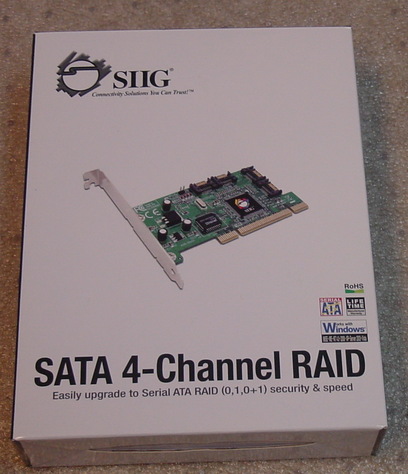

High-speed 4-channel PCI-to-Serial ATA RAID controller SIIG Part #: SC-SA4R12-S2
This item is unused. For more info please visit: SIIG, Inc. : Serial ATA 4-channel RAID - (SC-SA4R12-S2 )
Features
Supports RAID 0 (striping), RAID 1(mirroring) and RAID 10 (mirror + striping) for performance and reliability
Thin, flexible Serial ATA cables make it easier to route inside a PC
Breaks the 137GB barrier! Supports various brands of large capacity Serial ATA hard drives
Specifications
Regulatory approval(s): FCC Class B (DoC) & CE
RoHS compliant
Port type: Four Serial ATA ports
Slot type: 32-bit PCI
Compliant with Serial ATA Specification, revision 1.0
Compliant with PCI Specification, revision 2.2
Supports RAID 0 (striping), RAID 1 (mirroring) and RAID 10 (mirror + striping)
Coexists with Ultra ATA controller and allows you to connect up to four Serial ATA hard disks
Features independent 256-byte FIFOs per channel for host reads and writes
Features Watch Dog timer for fault resiliency and flash memory for future BIOS updates
Supports 32-bit wide PCI bus at 66MHz data transfer rates up to 150 MB/s (1.5Gb/s)
Lower pin count and voltage requirement, plus better cabling over traditional Parallel ATA make Serial ATA the controller of the future
Four high quality SATA cables and two dual connector SATA power cables required for RAID configuration are included. Two "Y" split power cable is also included to provide extra power connection!
System Requirements
Pentium® or equivalent PC with one available PCI slot
Windows® 2000 / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Vista (32-/64-bit)
Package Contents
Serial ATA 4-channel RAID
4 Serial ATA data cables
2 Dual-connector SATA power cables
2 "Y" split power cables
Driver and utility software
Quick Installation Guide
